Wireless access control door interface
433 - 868 MHz | MD-W11
Rosslare Security Products

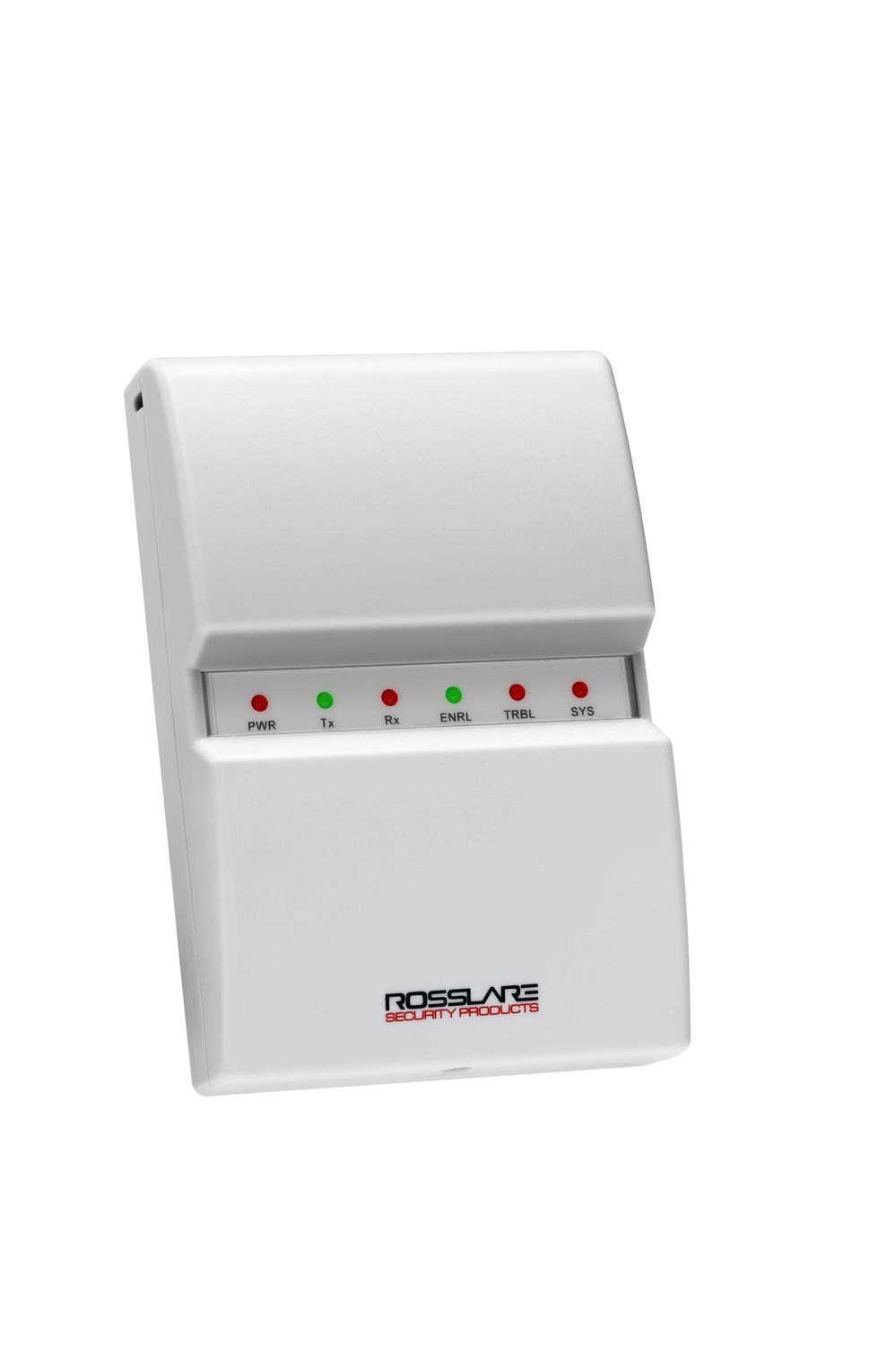

The MD-W11 Wireless Access Control Door interface consists of two units per door, one located near the controller (the Near unit) and the other near the door (the Far unit). The Near unit is connected to a Rosslare door controller, such as the AC-215, AC-225, or AC-525. The Far unit is connected to proximity card readers or keypads, such as AY-K12 and AY-Q64B.
Featured local charger, and backup battery option for the remote unit keeps the door and reader fully functional during a power loss.
Full supervision of the remote unit and event signals including Supervision failure, Tamper, Low Battery and power loss of the Far unit, is reported to the Near unit and to the controller.
Bi-directional RF communication with data protection using fast proprietary, anti-collision and rolling code protocol, narrow band RF, provides high reliability of the wireless link on regular ISM bands.
MAIN FEATURES
Maximum range of 70 meters (230 ft) indoors, or up to 400 meters (1300 ft) outdoors. Depending on RF related environmental conditions.
Overall response time of 500 ms when used with Rosslare's AC-225 controller and readers. Response time depends on RF link quality, the number of doors used and the controller and reader's response time.
Built-in charger for up to 7Ah backup battery on the Remote unit.
Compatible with all of Rosslare's readers as well as many third party standard Wiegand readers.
Separate sets of terminals for door and controller connections.
Case and wall tamper protection. Tamper events from either Near or Remote units are reported using a Tamper output on the Near unit.
Featured local charger, and backup battery option for the remote unit keeps the door and reader fully functional during a power loss.
Full supervision of the remote unit and event signals including Supervision failure, Tamper, Low Battery and power loss of the Far unit, is reported to the Near unit and to the controller.
Bi-directional RF communication with data protection using fast proprietary, anti-collision and rolling code protocol, narrow band RF, provides high reliability of the wireless link on regular ISM bands.
MAIN FEATURES
Maximum range of 70 meters (230 ft) indoors, or up to 400 meters (1300 ft) outdoors. Depending on RF related environmental conditions.
Overall response time of 500 ms when used with Rosslare's AC-225 controller and readers. Response time depends on RF link quality, the number of doors used and the controller and reader's response time.
Built-in charger for up to 7Ah backup battery on the Remote unit.
Compatible with all of Rosslare's readers as well as many third party standard Wiegand readers.
Separate sets of terminals for door and controller connections.
Case and wall tamper protection. Tamper events from either Near or Remote units are reported using a Tamper output on the Near unit.
