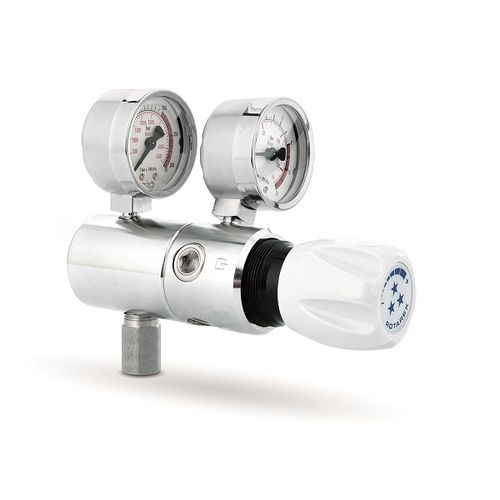

High-pressure pressure regulator D230gaspistontwo-stage
Add to favorites
Compare this product
Characteristics
- Product
- gas
- Technology
- piston
- Number of stages
- two-stage
- Material
- stainless steel
- Applications
- industrial, high-pressure
- Other characteristics
- compact
- Pressure
1 bar, 3 bar, 10 bar
(14.5 psi, 43.51 psi, 145.04 psi)- Flow
2 m³/h, 2.5 m³/h, 3.5 m³/h
(70.63 ft³/h, 88.29 ft³/h, 123.6 ft³/h)- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
Application:
For pure, inert and mildly corrosive gas applications requiring a very stable outlet pressure together with a very sensitive set up of this outlet pressure
Key Advantages:
Based on the proven S 20 bellows technology
Exceptionally accurate pressure control and stable outlet pressure due to the combination of piston and bellow technology
Compact, Ergonomic and lightweight
Specifications:
Temperature Range: -20º C to + 60º C -4º F to +140º F
Outlet pressure: 1 / 3 / 10 bar 14.5 / 44 / 145 psi
Body material: Chrome Plated Brass or Stainless Steel
Catalogs
Pressure regulators
88 Pages
