Positioning controller
A400
Rotary Precision Instruments UK

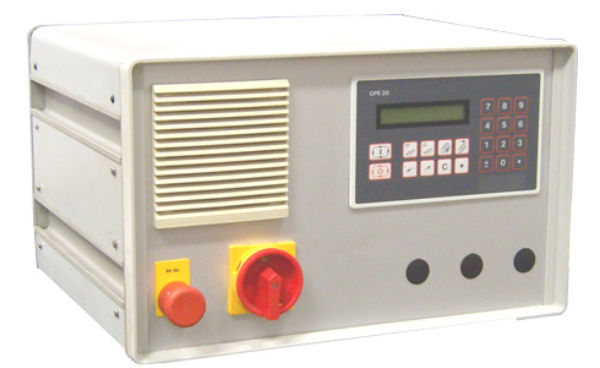

The CPS20 is a free programmable CNC positioning controller for 1 axis providing special functions adapted to circular tables or indexing attachments with position controlled drives.
Adaptation of the CPS20 controller to different circular tables/indexing attachments is done via parameter settings, shown as decoded text on the illuminated LC-display. Sinusoidal acceleration curves reduce considerably the load of all mechanical components. Clamping is automatically processed and monitored. Programming and operation is easy and comfortable due to menu-assisted sequences.
