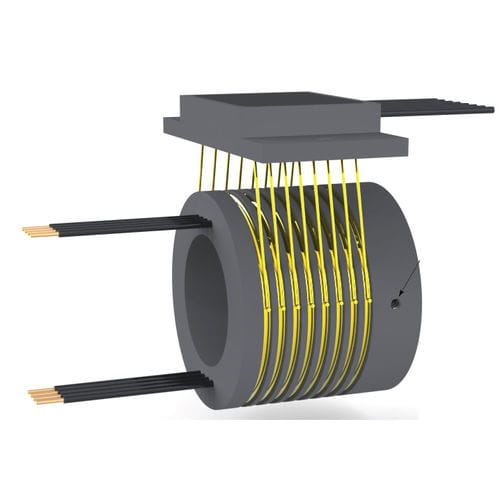

SR012 type separate slip ring & brush block sets were designed primarily for low voltage, signal applications for use at low to medium speeds. Because of their compact size these slip rings are ideal for applications where a complete package or capsule type assembly is impractical.
Insulation Resistance: >200MΩ at 500 VDC.
Hipot: 500 VAC for 15 seconds (all combinations).
Electrical Noise: Less than 10 mΩ - speed dependent.
Different numbers of rings to those shown.
Slip ring can be bored/sleeved to suit shaft diameter.
Increased barrier heights for applications to 240 VAC.
Termination type & length to customer requirements.
