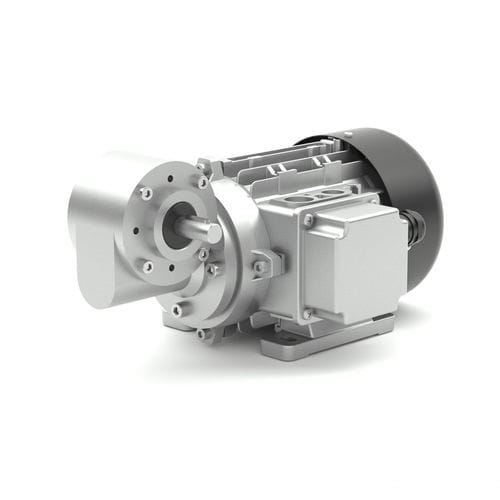

Three-phase gear-motor SN3Bwormright anglesolid-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W
- Torque
- 5 - 10 Nm, 10 - 20 Nm
- Product applications
- for industrial applications, for the food industry, for the packaging industry, for hygienic applications, for conveyor systems
- Other characteristics
- compact, maintenance-free, single-stage, IP54, foot-mounted, 4-pole, IP55, IEC B14
- Gear ratio
Min.: 5 unit
Max.: 75 unit
Description
Worm Gear SN3B
The right drive solution for every challenge:
The SN3B gear series is one of the most flexible and universally usable gear series form Ruhrgetriebe. The single stage gearboxes are available with a solid or hollow shaft - with or without flange. Available are different gear- and shaft positions and a large number of different motors.
SN3B-Gear types: SN3B / SN3B4 / SN3BFH / SN3BH / SN3BHFL
- Motor types: AC (230/400V) and DC (180/200V)
- Shaft design: Solid (SN3B /SN3B4) or hollow shaft (SN3BFH /SN3BH / SN3BHFL)
- Ratios: 5; 7; 11; 12; 15; 17; 20; 24; 30; 32; 38; 50; 56; 75
- Power: 120-250W
- permissible torques: 11-17 Nm
- effectiv torques: 3,2-23 Nm
- Additional options: brake motors, UL/CSA-certification, thermal protection, encoder
Additional Data:
- Ball bearings for motor and gear
- Worms hardened and ground
- Wormwheel made of special bronze alloy
For further information see product detail page.
