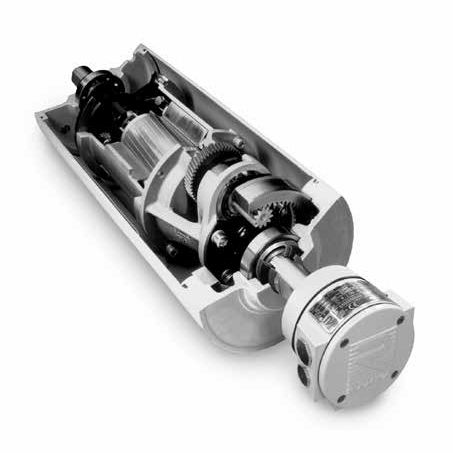

Asynchronous drum motor 220M-Hthree-phase
Add to favorites
Compare this product
Characteristics
- Motor type
- asynchronous, three-phase
- Diameter
216 mm
(8.5 in)- Width
Min.: 400 mm
(15.7 in)Max.: 2,000 mm
(78.7 in)- Velocity of the shell
Min.: 0.13 m/s
(0.43 ft/s)Max.: 2.5 m/s
(8.2 ft/s)- Rated torque
Min.: 11,500 N
Max.: 25,000 N
Description
This motorized pulley is extremely robust with a strong torque and can take a high radial load.
Characteristics
Salt-water-resistant aluminium bearing housings
3-phase AC induction motor
Dual voltage
Integral motor protection
Steel-hardened helical spur gear
Low noise
Maintenance-free
Lifetime lubricated
Reversible
Applications
Conveyors with high-duty cycles
Logistics applications
Airport and postal conveyors
Warehouse loading conveyors
Telescopic conveyors
Agricultural plants
Food processing
Steel or plastic modular belt applications
Dry, wet and wash-down applications
Catalogs
Unit Handling Drum Motors
116 Pages
