Characteristics

Treated product
water
Type..
convection
Temperature

Min.: 35 °F
(2 °C)

Max.: 375 °F
(191 °C)

Pressure

Min.: 27 psi

Max.: 150 psi

Description

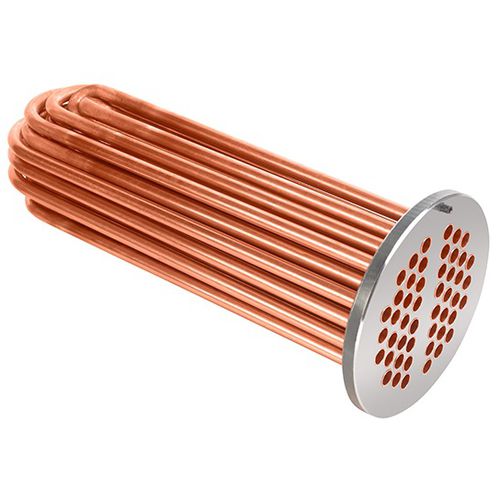

ApplicationsImmersion heating of water in storage tanks DescriptionThe Armstrong Tank Heaters are internal tube bundles designed for use with agitated or non-agitated tanks Materials Copper (tubes) carbon steel (tube sheet) brass (tube supports) cast iron (head ConfigurationSingle wall-tube or double wall-tube designs. In compliance with ASME Boiler and Pressure Vessel Code, Section VIII, Division 1 Performance range Max flow: 27 to 510 USgpm Max pressure: 125 to 150 PSI (depending on model) Temperature35 - 375˚F Power RangeN/A Size4” to 20”
