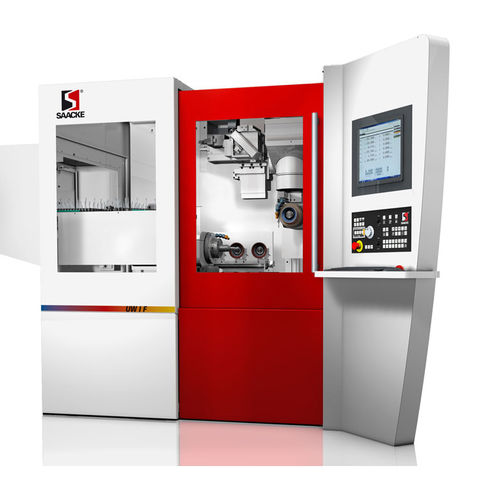

external cylindrical grinding machine / tool / CNC / automatic
UW IF SAACKE

{{requestButtons}}

Characteristics

  • Type:

    external cylindrical

  • Applications:

    tool

  • Control type:

    CNC, automatic

  • Other characteristics:

    high-precision, 2-axis

  • Power:

    5 kW, 16 kW, 26 kW (6.8 hp)

  • X travel:

    530 mm

  • Y travel:

    400 mm

  • Spindle speed:

    Max.: 20,000 rpm (125,664 rad.min-1)

    Min.: 2,000 rpm (12,566 rad.min-1)

Description

SAACKE precision in a compact form

Digital drives assure the highest dynamic control in all axes
Flexible assembly with fully automatic grinding wheel changer
Accurate positioning of the tools via 3D-measuring probe
Grinding wheel diameters up to 150 mm can be changed automatically


Tool data

Max. diameter 200 mm
Max. edge length for complete grinding measured at the front edge of the work head 270 mm (optional 360 mm)


Technical highlights

Grinding wheel at the swivel point of the grinding head
5 kW Grinding spindle power (optional 16 kW or 26 kW)
Grinding spindle speed 2,000 - 12,000 rpm
Work head with direct drive 600 rpm (optional 1,000 rpm)
2 Grinding wheel packages (optional 4)
Capacity/Pallet max. 40 tools
Capacity/Chain loader max. 480 tools
