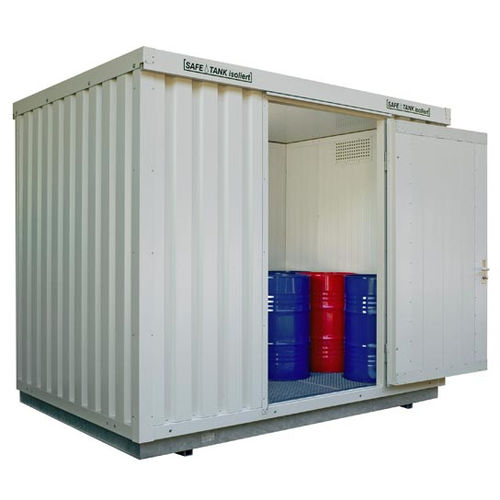

Galvanized steel intermodal container STI 1000

storagehazardous materialswith heat insulation

Characteristics: Approved for the outdoor storage of non-flammable, highly flammable and extremely flammable materials of all water hazard classes according to the German Ordinance on Industrial Health and Safety (“Betriebssicherheitsverordnung - BetrSichV”) Built according to the requirements of the German Water Resources Act (“Wasserhaushaltsgesetz - WHG”) Side walls and roof made from insulating sandwich elements, cover made of trapezoidal sheet metal, galvanised and plastic-coated The fire behaviour of the sandwich elements is classified according to DIN EN 13501-1; this corresponds to the technical term "hardly inflammable" of the national building authorities Standard colour of external and internal cover: RAL 9002 Single door 1200 x 2100 mm fitted as standard, right doorhang, with security lock and handle, mounted in the 3050 mm wall Roof with integrated guttering via the long sides, snow load 100 kg/m² Robust construction with structural analysis: Max. wind pressure on wall: w=0.40 kN/m² Max. wind suction on wall and roof: w=-0.25 kN/m² Max. snow load on roof: s=1.00 kN/m² Max. working load on sump: q=10.00 kN/m² Sump tray made of 3 mm sheet steel (S235JR), welded and leak tested, 40 mm clearance underneath the tank for corrosion avoidance, with galvanised grids, loadable up to 1000 kg/m², can be driven on Insulation: wall and roof: U = 0.47 W/(m²K) Delivered fully assembled Painted finish as optional extra, available colour codes: RAL 1003, RAL 3000, RAL 5010, RAL 6010 and RAL 7035 Further colours available on request
