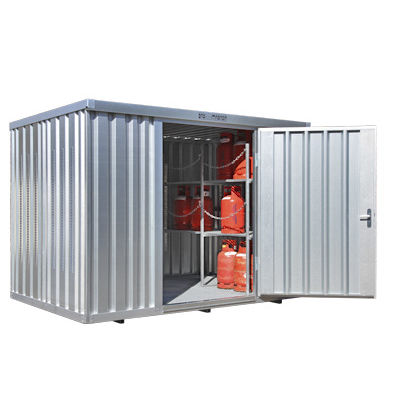

Galvanized steel intermodal container GM 348

storagehazardous materialsfor gas bottles

Characteristics: Side walls, roof and door made from galvanised trapezoidal sheet metal Constructive permanent self-ventilation (TÜV certified) Standard door with security lock and handle Unique construction with structural analysis: Max. wind pressure on wall: w=0.40 kN/m² Max. wind suction on wall and roof: w=-0.25 kN/m² Max. snow load on roof: s=1.00 kN/m² At-grate entry (ideal for lift truck, trolley etc.) or galvanised grid floor, can be driven on, highly loadable according to DIN 1072 and DIN 1055 Holding device, adjustable according to cylinder type, with additional security chains, completely galvanised Painted finish as optional extra, available colour codes: RAL 1003, RAL 3000, RAL 5010, RAL 6010, RAL 7035 and RAL 9002 Further colours available on request
