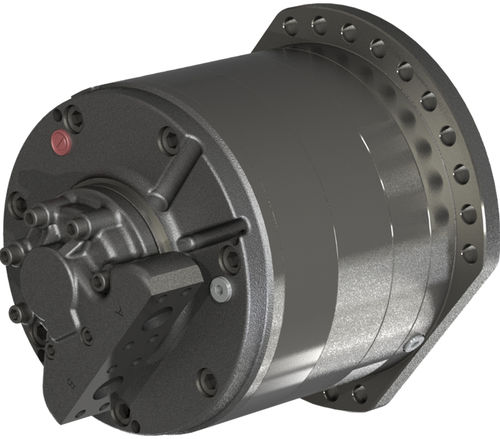

Radial piston hydraulic motor TS8fixed-displacement
Add to favorites
Compare this product
Characteristics
- Technology
- radial piston
- Other characteristics
- fixed-displacement
- Pressure
Max.: 45,000,000 Pa
(6,527 psi)Min.: 0 Pa
(0 psi)- Rotational speed
Max.: 200 rpm
(1,256.64 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Torque
Max.: 116.69 Nm
(86.07 ft.lb)Min.: 42.45 Nm
(31.31 ft.lb)- Displacement
Max.: 7,332 cm³
(247.92 US fl oz)Min.: 2,667 cm³
(90.18 US fl oz)
Description
7 piston fixed displacement motor, with integrated planetary gearbox of 6:1 reduction ratio, also available with negative brake (TS8F).
