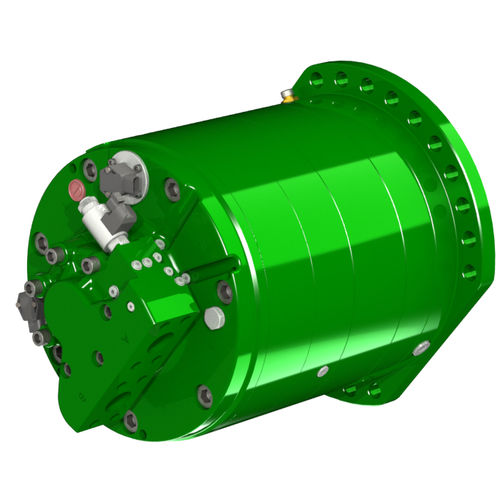

Radial piston hydraulic motor TS8VFvariable-displacement
Add to favorites
Compare this product
Characteristics
- Technology
- radial piston
- Other characteristics
- variable-displacement
- Pressure
Min.: 0 bar
(0 psi)Max.: 450 bar
(6,527 psi)- Rotational speed
Min.: 80 rpm
(502.65 rad.min-1)Max.: 200 rpm
(1,256.64 rad.min-1)- Torque
Min.: 14.19 Nm
(10.47 ft.lb)Max.: 116.69 Nm
(86.07 ft.lb)- Displacement
Min.: 894 cm³
(30.23 US fl oz)Max.: 7,332 cm³
(247.92 US fl oz)
Description
7 piston variable displacement motor, with integrated planetary gearbox of 6:1 reduction ratio, also avaible with negative brake (TS8VF).
Catalogs
TS8F - TS8DF - TS8VF
12 Pages
