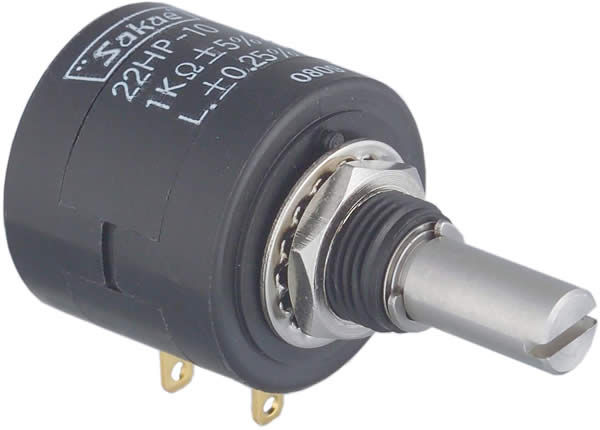

Wire wound multiturn precision potentiometer
100 Ω - 100 kΩ | 22HP-10
Sakae Tsushin Kogyo
Dimensions (mm)D×L :46x56
Shaf tDia.(mm) : 6
Standard Resistance Range (ohm) : 50 - 100 k
Max. Practical Resistance (ohm) : 200k
Independent Linearity (±%) : 0.3 - 0.1
Power Rating (W) : 5
Mechanical Travel (+10° 0°) : 3600
Electrical Travel (±5°) : 3600
Starting Torque Max. (mNm) : 20
Shaf tDia.(mm) : 6
Standard Resistance Range (ohm) : 50 - 100 k
Max. Practical Resistance (ohm) : 200k
Independent Linearity (±%) : 0.3 - 0.1
Power Rating (W) : 5
Mechanical Travel (+10° 0°) : 3600
Electrical Travel (±5°) : 3600
Starting Torque Max. (mNm) : 20
