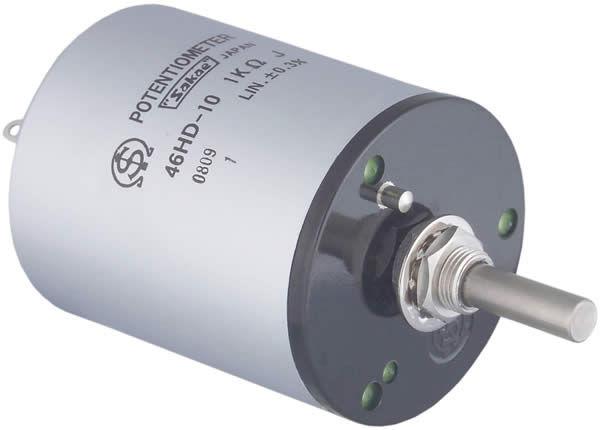

Wire wound multiturn precision potentiometer
50 - 100 kΩ | 46HD-10 Sakae Tsushin Kogyo

Dimensions (mm)D×L :46×56
Shaf tDia.(mm) : 6
Standard Resistance Range (ohm) : 50 - 100 k
Max. Practical Resistance (ohm) : 200k
Independent Linearity (±%) : 0.3 to 0.1
Power Rating (W) : 5.0
Mechanical Travel (+10° 0°) : 3600
Electrical Travel (±5°) : 3600
Starting Torque Max. (mNm) : 20
