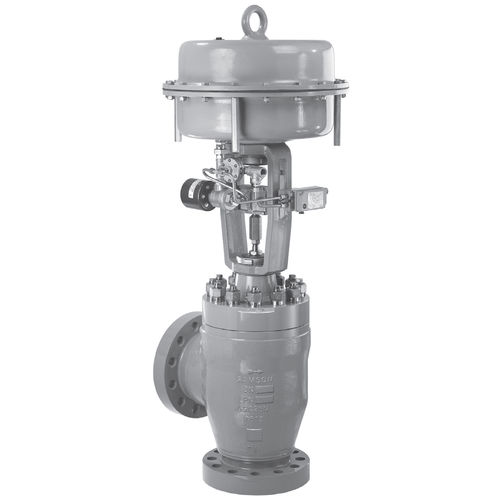

Regulating valve 3256plugpneumaticfor seawater
Add to favorites
Compare this product
Characteristics
- Type
- plug
- Operation
- pneumatic
- Function
- regulating
- Media
- for seawater
- Body
- flange, right-angle, stainless steel, cast steel
- Applications
- for industrial applications
- Other characteristics
- DIN, high-pressure, high-temperature, low-noise
- DN
Min.: 15 mm
(0.591 in)Max.: 300 mm
(11.811 in)- Pressure
Min.: 16 bar
(232.1 psi)Max.: 400 bar
(5,801.5 psi)- Temperature
Min.: -196 °C
(-321 °F)Max.: 550 °C
(1,022 °F)
Description
Special features
• - Consisting of angle valve and actuator
• - Low-noise valve plug
• - Pressure balancing to handle large pressure drops
• - Optionally including RFID transponder with unique marking according to DIN SPEC 91406
Accessories
• - Type 2 N Strainer
• - Type 2 NI Strainer
Options
• - Ceramic or carbide metal trims
• - Special version for flashing service
• - Welding or welding-neck ends
• - Flow divider or AC-trim for noise reduction
• - Insulating section or bellows seal
• - Heating jacket
• - Perforated plug
