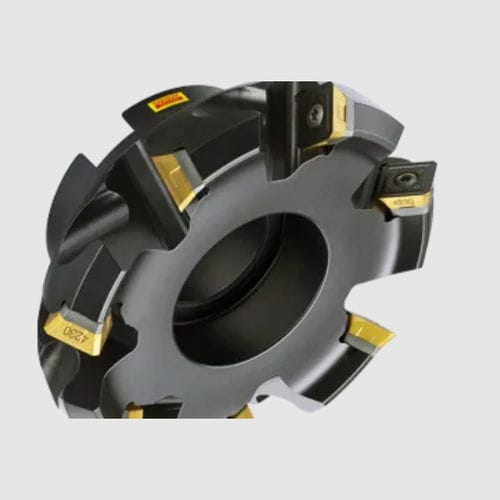

Shell-end milling cutter CoroMill® 245

insertroughingface

Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component. Benefits Easy to use and high productivity Light cutting with low power consumption Close tolerance combined with the wiper insert for superior surface finish Wide range of grades and geometries including ceramic and CBN grades Features 45˚ face milling cutter Demanding roughing to mirror finishing Smooth and light-cutting action for low cutting forces Four cutting edges per insert Wiper inserts for high feed finishing Arbor, CIS arbor, cylindrical shank, Whistle notch/Weldon mounting Also available in exchangeable cassette system, a concept for rough to semi-finishing of steel Application Face milling applications in all types of materials Diameter range Face mill: 32–250 mm (1.250–10.000 inch) Face mill with exchangeable cassette: 160–500 mm (6.000–20.000 inch)
