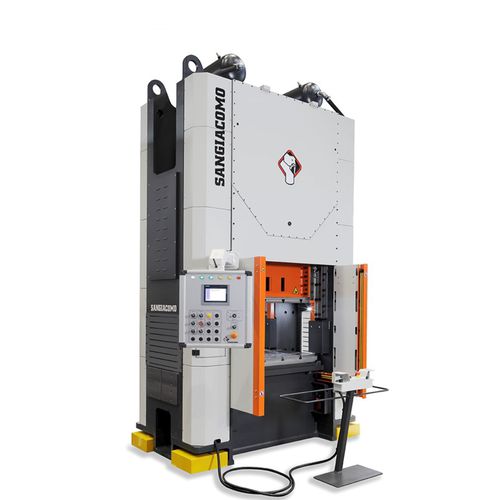

Mechanical press DM-SB
deep drawingstampingdrawing

mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
Add to favorites
Compare this product


Characteristics

Operation
mechanical
Function
deep drawing, stamping, drawing, punching, blanking, die-cutting, high-speed blanking, for molding, test, die-spotting, tryout, perforating
Structure
4-column, straight-side
Control
automatic, PLC-controlled, NC, hand-operated
Force

Min.: 500 kN

Max.: 4,500 kN

Rate (strokes/min)

Min.: 20 p/min

Max.: 200 p/min

Stroke

Min.: 12 mm
(0 in)

Max.: 300 mm
(12 in)

Table width

Min.: 800 mm
(31 in)

Max.: 1,750 mm
(69 in)

Table length

Min.: 600 mm
(24 in)

Max.: 1,200 mm
(47 in)

Description

STRAIGHT-SIDE presses thanks to a solid frame with four columns or uprights ensures a parallel deflection. This involves a significant reduction of tool wear which consequently results in a superior quality of process and parts. Moreover, the ram is fully guided for the entire stroke, so for the entire forming / stamping process. The production range includes presses from 50 to 500 ton with single or double connecting rod, direct drive, back geared and other kinematic motions.
