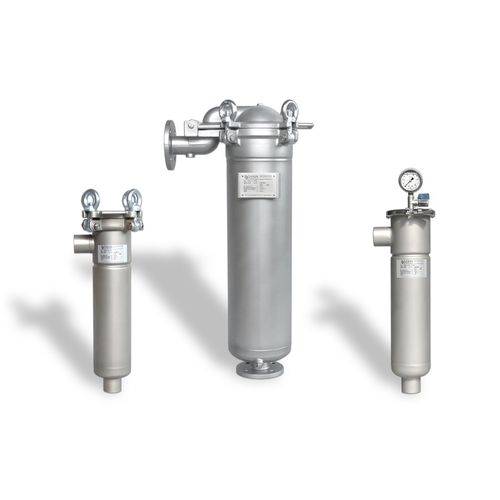

Bag filter housing FBG series
for waterfor chemicalsbeverage

bag filter housing
bag filter housing
bag filter housing
bag filter housing
bag filter housing
bag filter housing
Add to favorites
Compare this product


Characteristics

Filter type
bag
Fluid
for water, for chemicals, beverage, coolant, for wastewater, for oil, for melt
Material
polypropylene, stainless steel
Other characteristics
duplex, high-flow, high-performance, for high-pressure applications, corrosion-resistant
Operating pressure

Min.: 0 bar
(0 psi)

Max.: 16 bar
(232.06 psi)

Flow rate

Min.: 0 m³/h
(0 ft³/h)

Max.: 960 m³/h
(33,902.08 ft³/h)

Description

Filter bag housings made of stainless steel or plastic From coarse to fine filtration, Sanin Filtertechnik offers a wide range of stainless steel or polypropylene bag filter housings. For almost all areas of solid-liquid separation, our high-quality bag housings guarantee excellent filtration results. - Flow rates up to 960 m³/h - Fineness grades from 0,15 to 1800 µm - Operating pressures up to 16 bar - Temperatures up to 160 °C Sizes - Different housings for filter bags size 1, 2, 3, 4 and 5 (X100) - Single, duplex and multi-bag filter housings Connections - Flange DN 25 - DN 350 - BSP female thread ½“ - 14“ - Other connection types Materials - Stainless steel (1.4301, 1.4401, 1.4408, 1.4571) - Glass fiber reinforced polypropylene Accessories - Pressure gauge and venting valve - Magnetic strainer - Bag positioner, pressure absorption baskets, bag installation and removal aids, etc. Applications - Metalworking (cooling lubricants / oils) - Electroplating / surface technology (process baths / electrolytes) - Water and wastewater treatment - Printing inks / paints / varnishes - Resins / adhesives - Foods and beverages
