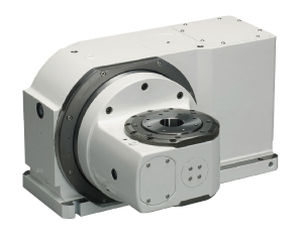

Motor-driven rotary table RT series
tiltingCNCrotating

motor-driven rotary table
motor-driven rotary table
Add to favorites
Compare this product


Characteristics

Operation
motor-driven
Configuration
tilting
Other characteristics
CNC, rotating, linear
Diameter

Min.: 80 mm
(3 in)

Max.: 100 mm
(4 in)

Description

In terms of performance, Sankyo's roller gear does for rotary motions what the ball screw does for linear motions. The roller gear cam mechanism consists of a roller gear and globoidal cam. Similar to the preloading structure of a ball screw, the roller gear has no backlash, and transfers power by rolling contact for strong rigidity and excellent efficiency. And no clamping is necessary. RollerDrive CNC Technology BACK TO TOP Features 2-Rotary Axes Allows machining of various workpieces. Available in 2 Table Diameters Available in table diameters from 80, 100 mm. Zero Backlash Technology RollerDrive Achieves Zero-backlash No clamping No clamping motion necessary because the mechanism is free of play. BACK TO TOP Typical Applications Machining of impellers Machining of turbine blades Machining of dies and molds
