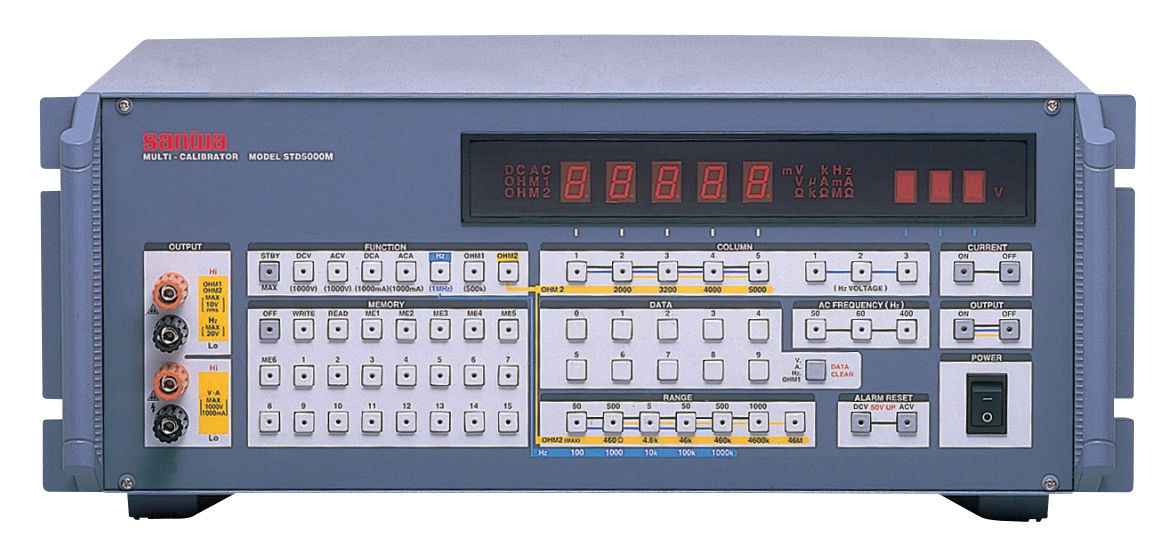

Multi-function calibrator for electrical measuring instruments
max. 1 000 V, max. 2 A | STD5000M
Sanwa Electric Instrument
STD5000M, Standard caliblrator with memory
Basic Features
High accuracy ±0.03%（DCV DC mA）
Reliable accuracy is achieved by using the standard voltage IC with a constant-temperature bath for the reference voltage and wire wound resistor and metal film resistor with high tolerance and low temperature coefficient for the resistance element.
Calibrates 6 types of functions
With the calibration elements of 6 functions（DCV, ACV, DCA, ACA, OHM, Hz）incorporated, it can be used for calibrating and maintaining the DMM, DPM（digital power meter）, circuit tester and industrial instruments.
Installs 90 （6x15） output memories
With 90（6x15）output memories installed, it is possible to save desired setting.
