truck-mounted crane / luffing jib / telescopic / all-terrain

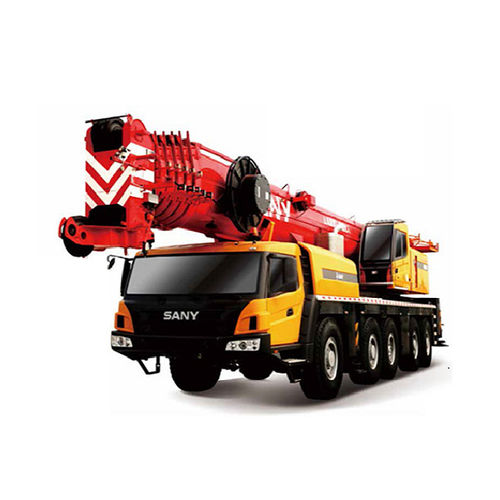

SAC1800 SANY

{{requestButtons}}

Characteristics

  • Configuration:

    truck-mounted

  • Structure:

    luffing jib, telescopic

  • Operating environment:

    all-terrain

  • Other characteristics:

    hydraulic, diesel-powered, lifting

  • Lift capacity:

    Max.: 180,000 kg (198 lb)

    Min.: 1 kg (2 lb)

  • Working height:

    Max.: 62 m (203'04")

    Min.: 0 m (0'00")

Description

Sany SAC1800 all terrain crane is remarkable in operation. Its maximum traveling speed is up to 81km/h. All axles are steering axles and axles 1, 2, 4 and 5 are drive axles, wheels differential locks, the bar feedback hydraulic power steering system and the electrohydraulic control steering system are adopted to ensure easy steering and flexible operation.

Powerful Lifting Capacity

The longest boom length of the 180 ton all terrain crane is 97m and lifting height 97.5m, max.lifting capacity of 180t,which ensures the super strong lifting capacity. The six-section telescopic boom is made of fine grain high-strength steel with U-shaped section.

0°~ 40°automatical infinite variable luffing jib is applied to ensure convenient switch over between all operating conditions with high efficiency.
