Power measurement and monitoring system
PM172P
SATEC

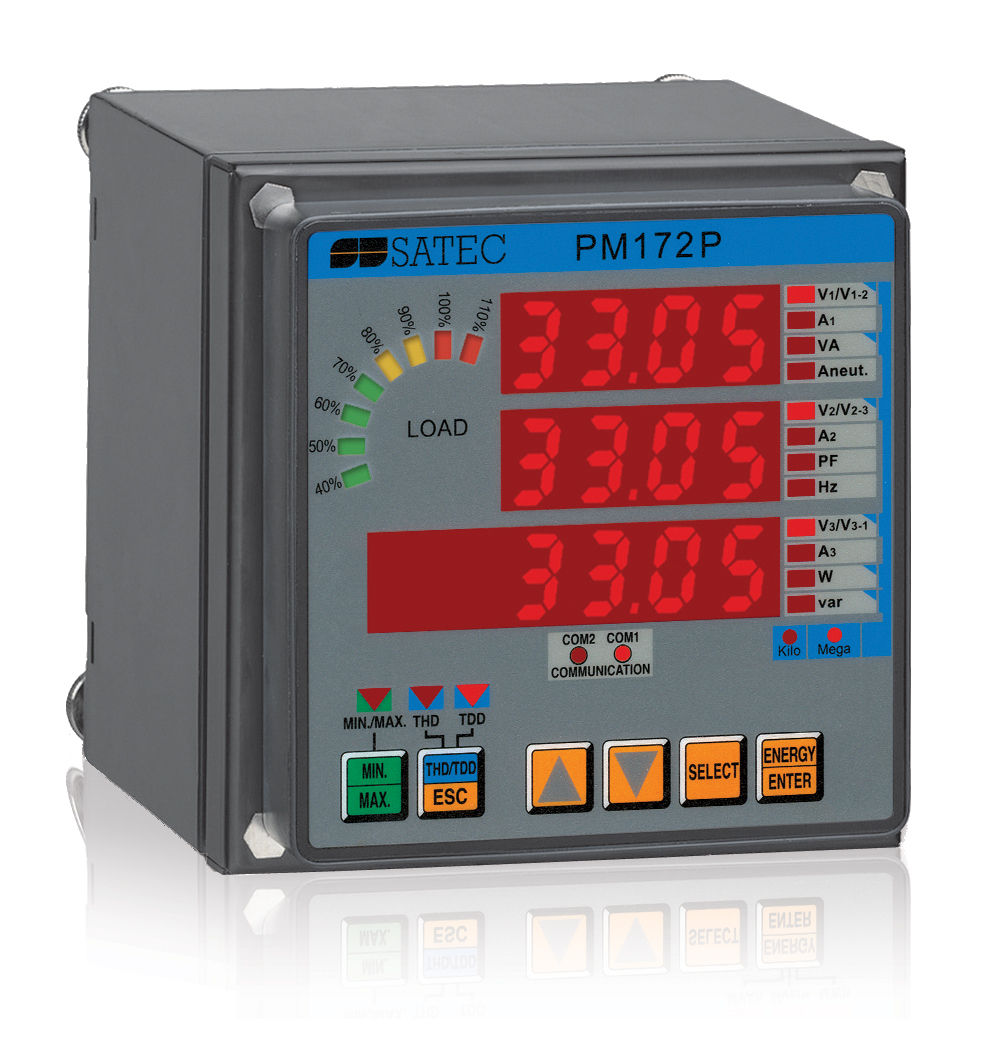

PM172P - Advanced Power & Revenue Meter with Event/Data Log
The PM172P is a high performance feeder monitoring instrument. With over 100 electrical measurements and long term memory logging capability, this instrument is an economical approach to distribution automation for utilities.
Event and data log on the basis of programmable set points is a differentiating feature of the PM172 series. The PM172 series includes a choice of built-in communication platforms, such as modem, Ethernet, Profibus DP, and serial communication.
MULTIFUNCTIONAL THREE-PHASE POWER METER
- Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance, load profile
REAL TIME CLOCK
- Built-in clock and calendar functions with back-up battery
- Time synchronization via communication port or digital input
- Logging parameters with real-time stamps
EVENT/DATA LOG
- Logging capability for >100 parameters
ALARM AND CONTROL FUNCTIONS
- 16 programmable set points
- 2 programmable relay outputs 3A, 250V
- 2 digital inputs
- 2 optional analog inputs or outputs
COMMUNICATION
- 2 independent communication ports
(RS232, RS422, RS485, modem, Ethernet, Profibus DP)
- Protocols: Modbus RTU, ASCII, DNP 3.0
ISOLATION
- Full galvanic isolation 6 kV Impulse
