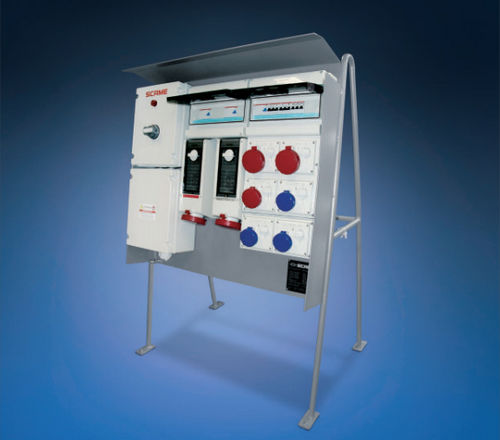

Construction site electrical enclosure MEGA seriesequippedverticalplastic
Add to favorites
Compare this product
Characteristics
- Type
- equipped
- Configuration
- vertical
- Material
- plastic
- Application
- power distribution, for construction site
- Other characteristics
- with electrical socket
- Width
Max.: 1,800 mm
(70.9 in)Min.: 1,210 mm
(47.6 in)- Height
Max.: 1,800 mm
(70.9 in)Min.: 1,600 mm
(63 in)- Depth
Max.: 850 mm
(33.5 in)Min.: 780 mm
(30.7 in)
Description
MEGA Series assemblies are supported on a strong metal frame with protective roof and are designed for power distribution on construction sites with connected loads in the range of 90 KW to 370 KW.
VERSIONS
This series comes in three sizes (WxHxD)
1210 x 1600 x 780mm
1520 x 1800 x 850mm
1800 x 1800 x 850mm
self-supporting stand.
Provision for up to 12 ADVANCE Series and QUADRA Series industrial interlocked-switch sockets outlets, rated currents in the range of 16A to 400A in conformity with IEC 309-1 and IEC 309-2 standards.
