screw-in fitting / straight / elbow / hydraulic
SMART series SCAME PARRE S.p.A.

{{requestButtons}}

Characteristics

  • Attachment:

    screw-in

  • Configuration:

    straight, elbow

  • Applications:

    hydraulic

  • Material:

    plastic

  • Other characteristics:

    IP67, IP66, rigid

  • Diameter:

    Min.: 16 mm

    Max.: 50 mm

Description

The SCAME range of conduit installation accessories expands its pipe connection elements with the SMART Series having degree of protection IP66/IP67.

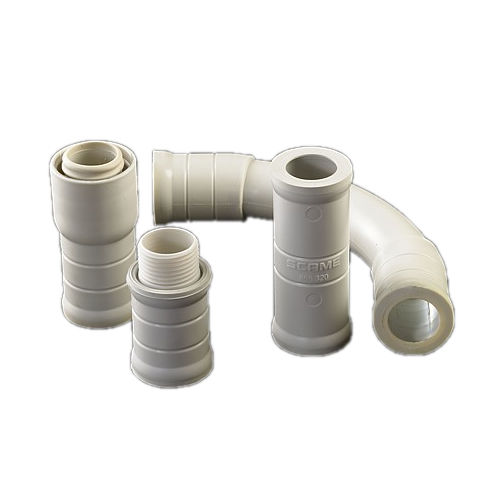

The new product range includes the following connection elements: 90° elbow, straight joint, joint for pipe-box connection and joint for pipe-sheath connection.
The new fitting does not have assembled parts and the seal is directly overmoulded onto the body, thus ensuring greater reliability of its sealing and protective features over time.

CEI EN 61386-1
Conduit systems for electrical installations
Part 1: General requirements

CEI EN 61386-21
Conduit systems for electrical installations
Part 2A: Particular requirements
Rigid conduit systems

European Standard EN 60423
Conduits for Electrical Purposes.
Outside Diameters of Conduits for Electrical Installations and Threads for Conduits and Fittings
1996 second edition
