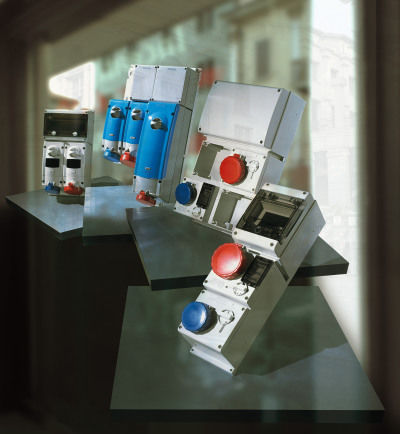

wall-mounted electrical socket / built-in / IP44 / interlocked
ADVANCE2 series SCAME PARRE S.p.A.

{{requestButtons}}

Characteristics

  • Mounting:

    wall-mounted, built-in

  • Protection level:

    IP44

  • Other characteristics:

    interlocked

  • Current:

    Min.: 16 A

    Max.: 63 A

Description

MODULAR SYSTEM FOR COMBINATION UNITS

The new, completely IMQ-certified, system by Scame has been mainly designed for industrial purposes. It consists of two bases (module 106 and module 136), which can be provided with interlocked sockets made in two 16/32A and 63A containers.
The reduced number of versions in only two sizes is the solution to manifold planning and installing problems, assembling very few elements and easy maintenance.

VERSIONS

The whole ADVANCE 2 system is based on two standard widths, 106 and 136 mm, which are produced in two different modules:

- MODULO 106 here defined as compact
- MODULO 136 here defined as large

Both modules are also available in the HD (Heavy Duty) version, which is made with high mechanical features and resistant to chemical agents. It has been designed for heavy use.

ADVANCE 2 System consists of the following:

- no. 2 modular supports having the sizes below:
106 x 434 (Compact)
136 x 584 (Large)

- Many connector blocks and set housing boxes with modular length of 106 and 136 mm.
