Digital pressure calibrator
1 - 700 bar | MEP-D
SCANDURA & FEM

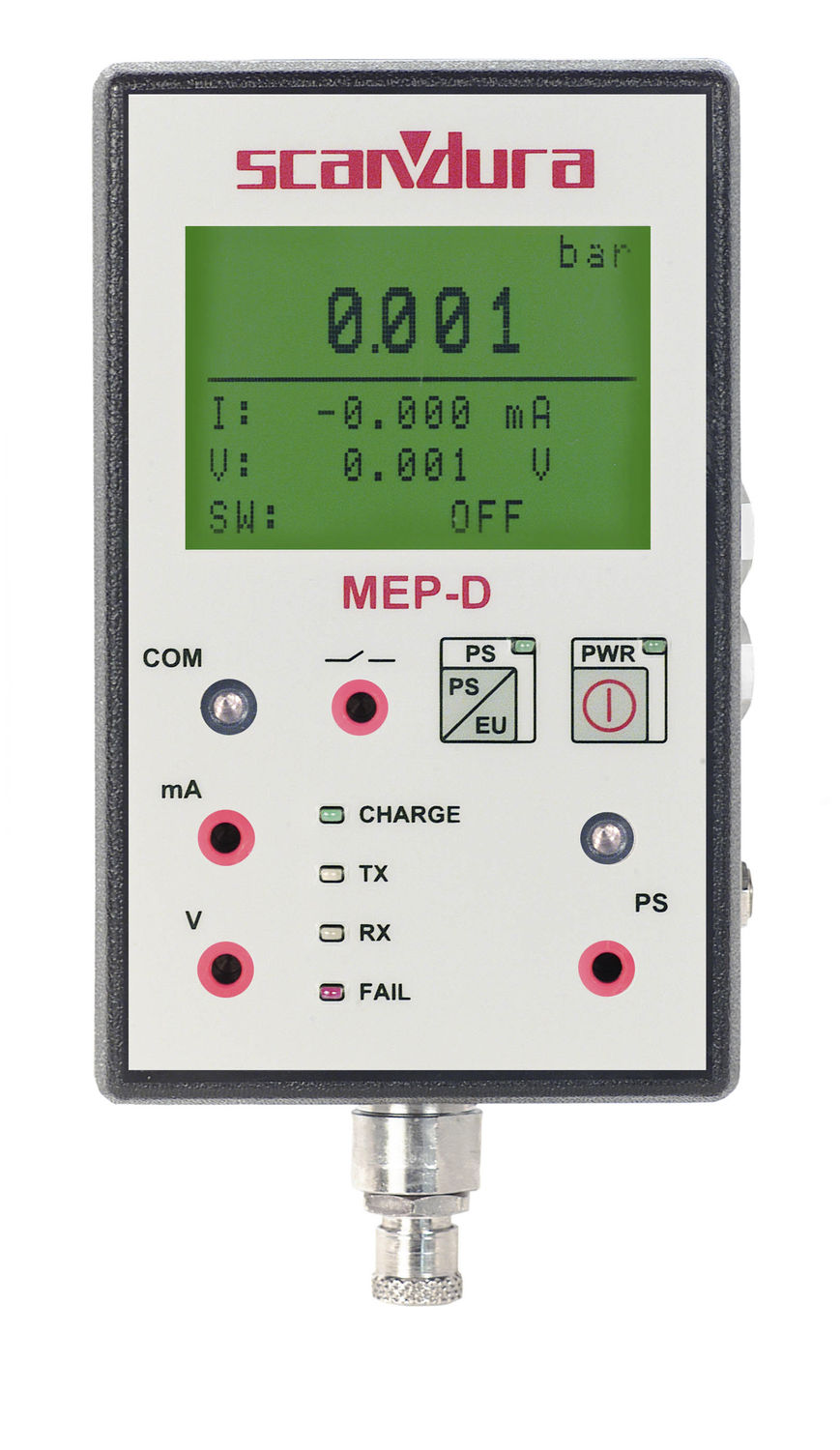

MEP, the Scandura electric-pneumatic handheld calibrator, it's now available with the display embedded. The wide display allows simultaneously to visualise the:
reference pressure value and the related measurement units
transmitter's output during a calibration (0 ÷ 25 mA)
voltage input signal (0 ÷ 30 V d.c. )
switch status (ON - OFF)
and it can feed also a current loop at 24 Vcc.
Connecting a PDA (with as PalmOS™ sw) to the instrument, by the serial interface, it's possible to manage the complete calibration cycle till the printing of the reports.
The required software to manage the PDA is supplied into the standard package of the instrument.
Alternatively to the PDA, the device can be connected to a PC by a serial interface unit, so that every terminal can be used. Ranges from 60 mbar up to 700 bar.
