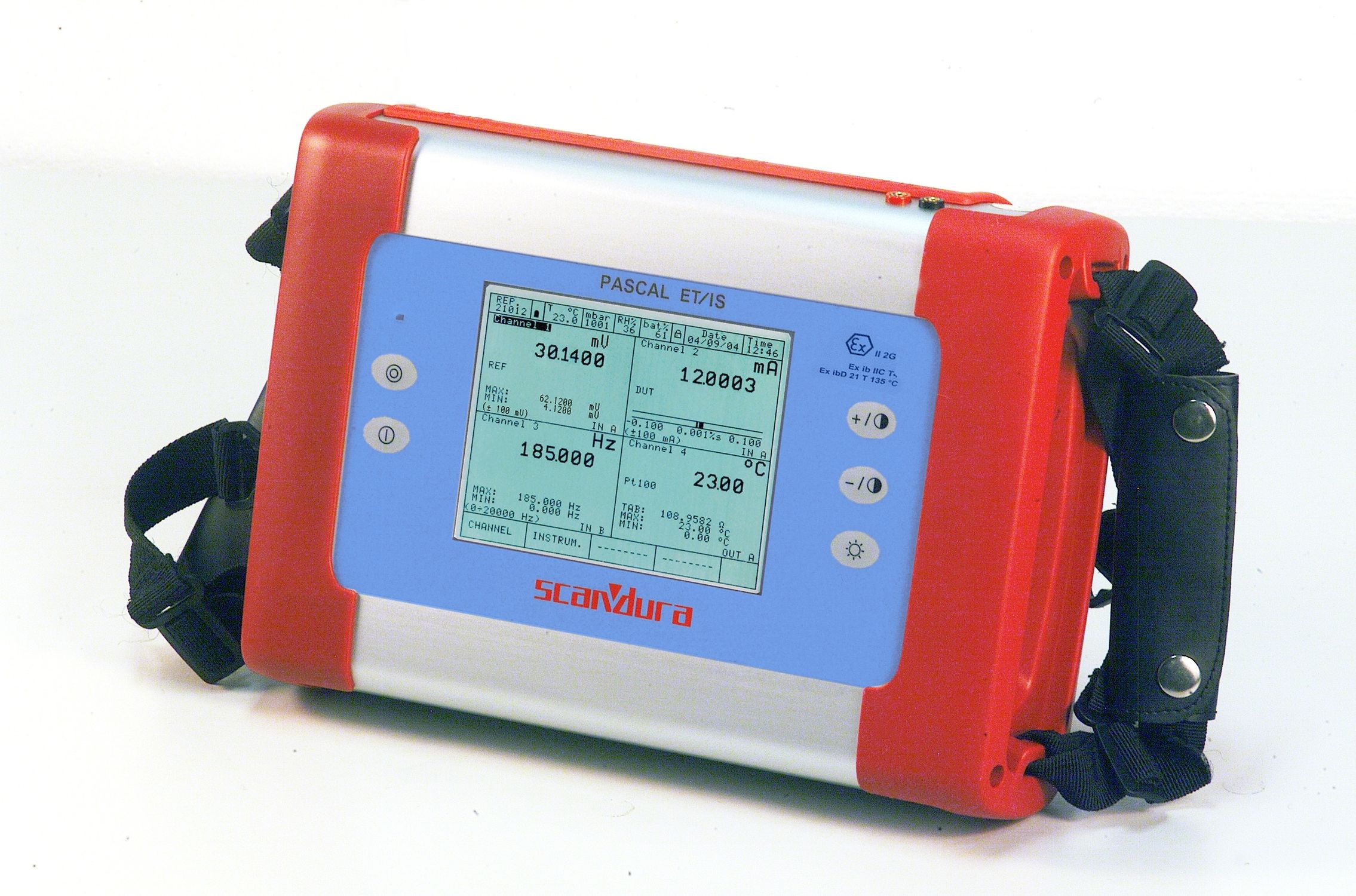

Intrinsically safe multi-function calibrator
max. 700 bar | PASCAL ET/IS - ATEX SCANDURA & FEM

Pascal ET/IS is the most advanced portable multifunction calibrator for the measurement and simulation of the following parameters:
- Electrical signals (mA, mV, V, Ώ)
- temperature (TC and RTD)
- frequency & pulse
- Vacuum/ Pressure (by External Pressure Sensors)

--------------------------------------------------------------------------------

The main features are:
- approval: ATEX 94/9/CE- Ex II 2G Ex ib IIC- T4
- modular configuration: up to 2 input and 2 output modules for the electrical signals/temperature
- built in 24 Volt to feed the transmitter under test
- pressure measurement: by 2 external pressure sensors, different ranges from vacuum up to 700 bar
- - large memory to store calibration procedures, reports and data logging
- wide touch-screen display with 4 variables simultaneously indicated
- high resolution and high accuracy: up to 0,01%f.s. for pressure measurement, 0,008% for the electrical signals
- real-time bi-directional communication to PC
- fast and easy maintenance through the input & output plug-in modules and recalibration procedures
