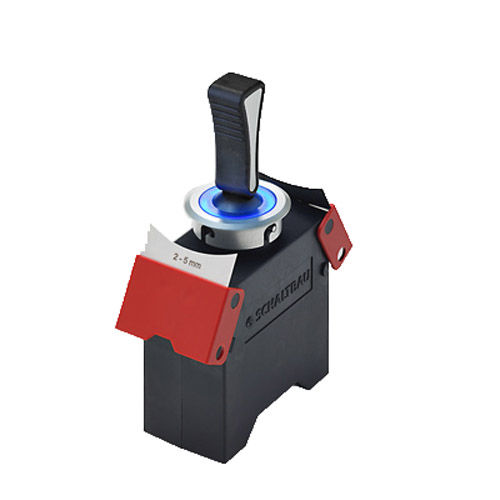

lever switch / single-pole / for railway vehicles / electromechanical
K series Schaltbau GmbH

{{requestButtons}}

Characteristics

  • Type:

    lever

  • Number of poles:

    single-pole

  • Other characteristics:

    for railway vehicles, electromechanical

  • Current:

    6 A

  • Voltage:

    125 V, 250 V

Description

Series K toggle switch assemblies are equipped with up to 8 snap-action switches type S880. With these switching elements 3 and 5 switch settings can be realised. Following UIC 612 and technologically state-of-the-art they are compatible to the P Series toggle switches as far as their momentary and maintained operation is concerned.



Features

- Handle styles: Special, ball or T-handle, standard
- Action: 3 and 5 position, momentary and maintained operation, compatible to Schaltbaus P Series toggle switches
- Central fixing: Elegant switch mount with illuminated ring used as function indicator or for night design. Easy to mount
- Rugged and durable: Solid and completely sealed plastic housing. Cage clamp terminals at the bottom of the switch with Deutsche Bahn approval


iF product design award

Schaltbau toggle switch Series K has been granted the iF product design award 2012. Donated in 1953, the award is a recognized seal for excellent product design the world over. Tricon Design AG, a company with a lot of expertise in traffic engineering, was commissioned by Schaltbau with the design of the switch.
