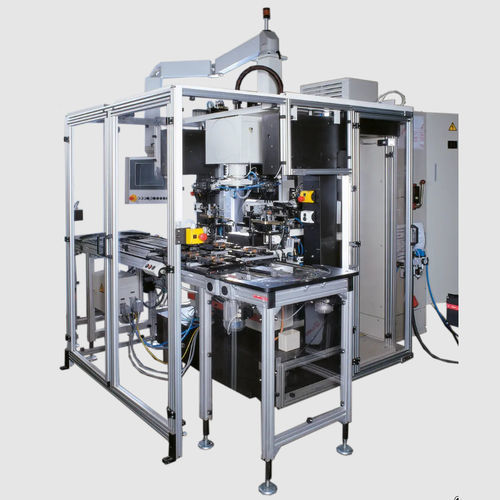

Horizontal balancing machine 460 KBTU

dynamicelectric armatureautomatic

Integrated overhead rotary transfer Machine base of mineral casting with good damping characteristics Automatic sequence, secured, controlled by Soft PLC NC axes for all movements Integration with production lines Powerful PC based industrial measuring unit Photo based operating manual for conversion of machine Picture and text based fault diagnosis Teleservice for measuring and control system Correction methods Profile milling: Polar unbalance correction at the correct angle, suitable for most applications. Polar slot milling: The milling spindle with twin cutter is displaced axially to shift the effect of the milling operation to the polar direction of the unbalance. Slot milling: A variable method for quasi-polar or component correction. High flexibility through employment of single or multiple cutters and adaptation of the component angle. All correction methods can be used for armatures with inclined or straight stack slots. In addition to material removal by plunge milling, weight removal can be increased by controlled axial cutter advancing.
