Clean room tent
ISO-Cleanroom class 5,6,7,8
Schilling Engineering GmbH
(US. Fed. Stand. Kl. 100 - 100'000)
- modular cleanroom cabin for simple assembly
- minienvironment made of cleanroom-PVC-film curtains,partly with strip curtains
- U15 ULPA high performed-laminarflow-module
- integrated cleanroom lighting
- over-flowing zones near the ground
- Dimension: (WxDxH mm) 2030 x 1750 x 2820 mm) / interior height: 2500 mm

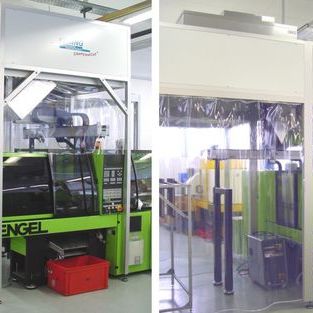

Cleanroom System for Medicinal-Plastic Injection Moulding Production
ISO-Cleanroom class 7 (US. Fed. Stand. cl. 10'000)
- cleanroom cabin with built-on material changing room in the output-area
- minienvironment made of cleanroom PVC-film curtains alternative partly with strip curtains
- U15 high performed -laminarflow-module
- built-on cleanroom lighting
- over-flowing zones near the ground
- fully integrated extraction system
- tool change by service flap from above possible
- fully integrated output tray / packaging
Cleanroom System for Medicinal-Plastic Injection Moulding Production
ISO-Cleanroom class 7 (US. Fed. Stand. cl. 10'000)
- cleanroom cabin with built-on changing rooms for personal or material at the SGM-user's side
- minienvironment made of cleanroom PVC-film curtains
- U15 high performed -laminarflow-module
- built-on cleanroom lighting
- over-flowing zones above the tool area as well as above the ground gap of the curtains
- tool change by service flap from above possible
- component verification and packaging at cleanroom-working bench
-
