Process reliability, force/stroke monitoring of the joining process and EN ISO-compatible documentation of the results are becoming the major factors for small and medium production within the manual workplace.

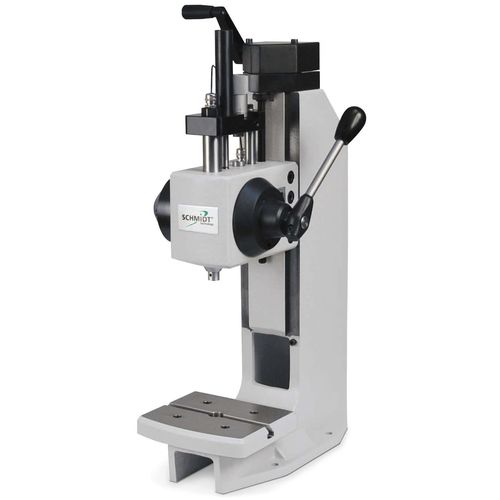

The SCHMIDT® ManualPress 300 Series system with SCHMIDT® PressControl 700 includes:
Integrated reliable measuring technology
High resolution of the obtained process data
Graphical and numerical output of the processing results
Quality monitoring using freely selectable tolerances
Process reliability – not just a slogan. The system software allows easy setup of quality control criterea for 100 % in-process monitoring.
Features
Linear force progression for No. 305 and No. 307
* Precise adjustment of the press depth via micrometer fine
adjustment
* Guides require little maintenance, have little wear and are
locked against rotation. This results in precise working
and a long service life
* Optimum guidance and clamping due to dovetail guide on the
press head
* Quick set-up
* Exact alignment of ram bore to the table within 0.05 mm
* Height adjustment using a crank
* Precision bores in ram and column base plate
