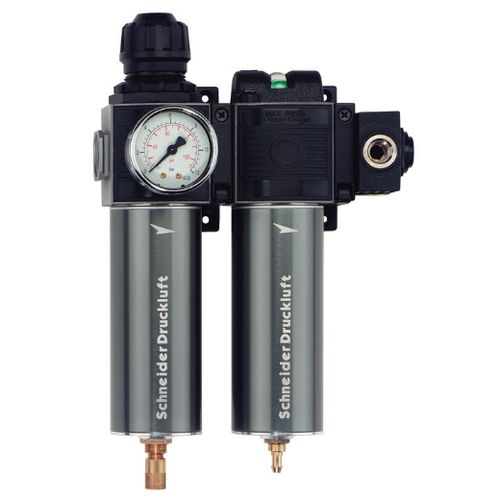

Compressed air filter-regulator-lubricator FDM/FF 1/2airactivated carbon
Add to favorites
Compare this product
Characteristics
- Designed for
- compressed air, air
- Filtration element
- activated carbon
- Operating pressure
Max.: 12 bar
(174.045 psi)Min.: 1.5 bar
(21.756 psi)- Filtration size
0.01 µm, 40 µm
Description
Lockable adjustment button with fine adjustment
Option of connecting one pneumatic tools
Control range: 1.5 to 12 bar
Standard features include a pressure gauge, 40 μm prefilter element, 0.01 μm microfilter element and an activated carbon filter with 0.005 mg/m³ filtration degree (3-way version only)
Highest compressed air quality - specially for applications where a high-quality compressed air is required (e.g. painting). Temperature range +5 °C to +40 °C
Simple draining of the sludge container through quick-vent valve
Technical details
GTIN/EAN - 4011666406590
Article number - DGKD426030
Version - 2-way
Air inlet - G 1/2"
Weight - 2.5 kg
Dimensions (WxDxH) - 183x124x290 mm
