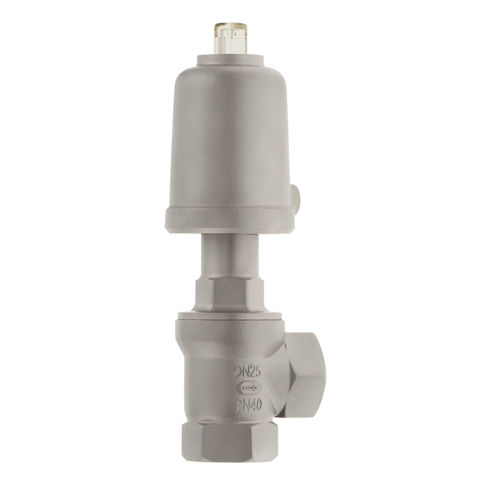

Right-angle valve 7050

stainless steelfor aggressive media

Pneumatic actuated right angle valve for high cycling applications and compact installations. In stainless steel suitable for aggressive media but also for a wide range of temperature applications. •Size: DN 15 - DN 50 •Pressure: PN 40 •Material: Stainless steel 1.4408 •Temperature: Media temperature: -30°C to +200°C Application from -100°C up to +220°C Connection: Whitworth pipe thread NPT thread Accessories: Limit switch Pilot valve Manual override . . . Actuator variants - Piston actuator of - Brass (chrome plated) - Stainless steel - Polymer Stainless steel diaphragm actuator Application: Gases, vapours, fluids Versions - Low temperature version Degreased version, Silicon or PTFE-free version
