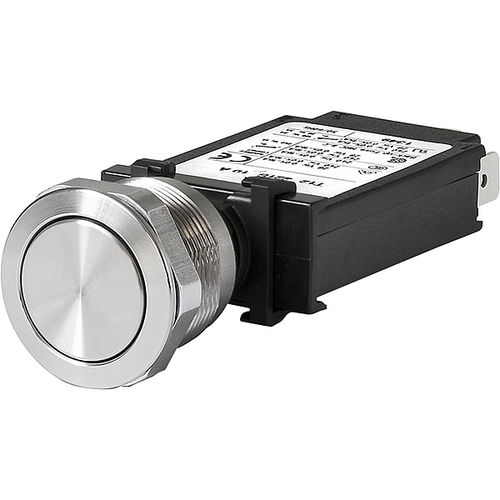

Thermal circuit breaker / multi-pole / manual reset
T12-MSM SCHURTER

Characteristics

  • Type:

    thermal

  • Electrical characteristics:

    multi-pole

  • Operational mode:

    manual reset

  • Current:

    Min.: 0.05 A

    Max.: 16 A

  • VDC:

    28 V

  • VAC:

    240 V

Description

- Thermal circuit breaker
- Metal switch non-illuminated and illuminated
- 1 pole
- Quick connect terminals 6.3 x 0.8 mm or screw terminals
Approvals
- Approval Reference Type:T12
- IEC Standard:IEC 60934
- UL Standard:UL 1077
- GB Standard:GB 17701
Applications
- Power supplies
- Uninterruptible power supply
- Power tools
- Household appliances
References
Component 1: circuit breakers z T12-221 z T12-222
Component 2: metal switch z MSM LA 19 ; z MSM LA 22
Component 3: Coupler
