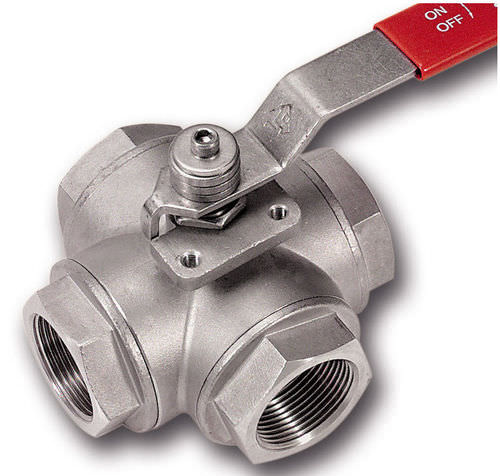

Ball valve A-4BVGmanualfor gasflange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Media
- for gas
- Body
- flange, stainless steel, PTFE
- Number of channels
- 4-way
- Associated function
- switching
- Other characteristics
- standard
- DN
Max.: 50 mm
(1.969 in)Min.: 8 mm
(0.315 in)- Pressure
64 bar
(928.2 psi)
Description
A-4BVG
90 ° switching, with flange for actuators to DIN / ISO 5211, with parallel BSP thread to DIN / ISO 228
Housing and ball made of 1.4408. Sealing material PTFE. Internal structure analogous to A-3BVGdc. H = height of centre axis to the hand lever-top. Diagram: X-hole is standard. We reserve the right to alter dimensions.
