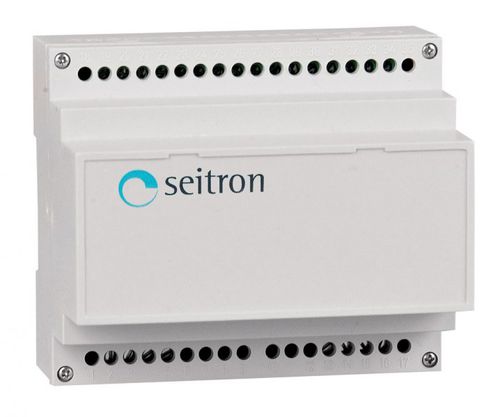

Fan speed controller TFEINF

This power interface for fan-coils features a DIN-rail mount capability and four outputs each driving one 3- speeds motor. Each of the signals coming from the 'master' fan-coil thermostat actually drive one relay, which, in turn, drives the relevant coil of the fan motor wired to it. Therefore this interface is capable of driving up to four motors each having a maximum power of 1/10 HP. TECHNICAL FEATURES Power supply 230V~ -15/+10% 50Hz Contact rating 4 x 3 (0,3)A @ 250V~ SPDT Protection grade IP30 Dimensions H90 W105 D70mm
