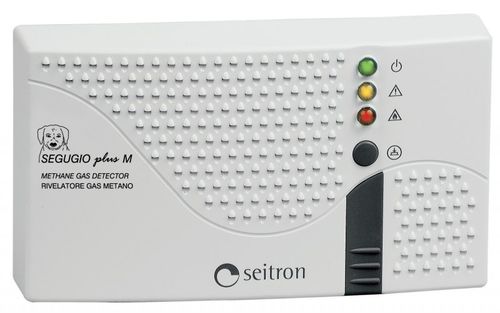

Microprocessor based domestic methane leak detector SEGUGIO PLUS with output for both 230V~ and 12V~/= cut-off valves.
Mute and test functions. Precalibrated sensor, directly replaceable by user.
IMQ quality mark and compliance with CEI-EN 50194-1 certify the absolute reliability and efficiency of the device.
TECHNICAL FEATURES
Power supply 230V~ ±10% 50Hz
Output (relay) 6(2)A @ 250V~ SPDT
Sensor type SnO2 Semiconductor Precalibrated sensor, directly replaceable by user
Sensor life 5 years
Alarm threshold 10% L.E.L.
Green LED indicator Detector active
Yellow LED indicator Detector failure
Red LED indicator Alarm
Alarm buzzer 85dB (A) @ 1m.
Protection grade IP42
Dimensions H84 W148 D40mm
Product mark IMQ
