Compatible with 1 phase 2 wire, 3 phase 4 wire systems
Bargraph for current indication, Max / Min Demand measurement for Power, % THD up to 31st level for Voltage and Current
Single Channel, Plug-n-wire current transformer input
100 to 240V (L-N), 173 to 415 (L-L) measurement
Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 1% for Power and energy, 0.01 digit for PF
Auxiliary Supply of 60 to 300V (L-N), Self powered
Pulse output and RS485 Modbus communication
CE, MID Certified
Specifications

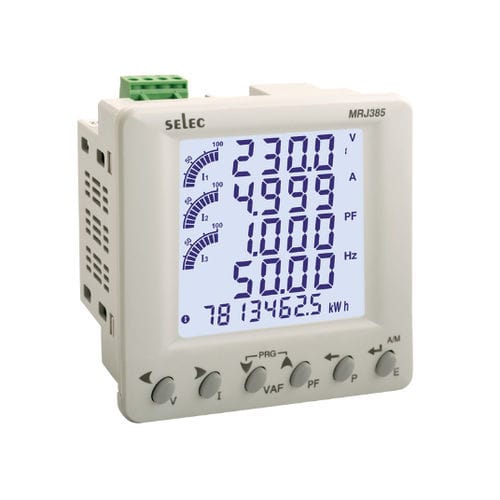

Display Type - LCD With Backlight, Bargraph Representation for Current
Display Configuration - 4 rows of 4 digits,1 row of 8 digits for Energy display
Electrical Connection - 3Ø - 4W, 1Ø - 2W
Type of Output - Pulse Output
Features - Phase Angle Detection, RJ45 Connector Current Input, %THD up to 31st Level, Energy (Active / Reactive / Apparent), Import / Export Energy, Max Demand Power
Communication Protocol - RS485 and MODBUS RTU
CT Primary - 5A to 10,000A (Programmable for Any Value)
CT Secondary - 330mV (Programmable)
PT Primary - 100V to 500kV (Programmable for Any Value)
PT Secondary - 173 to 415V AC (Programmable for Any Value)
Rated Input Voltage - 100 to 240V AC (L – N), 173 to 415V AC (L - L)
Supply Voltage - Self Supplied (V1, N), 60 to 300V AC (45/65Hz)
Size - 96 x 96mm
Mounting Type - Panel Mount
Certification - CE, MID
