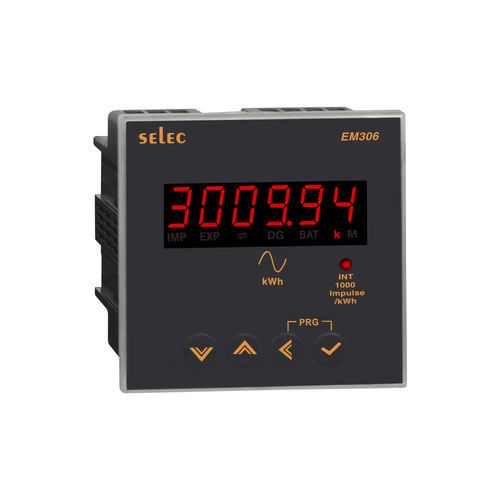

Single-phase electric energy meter EM306 series

panel-mountRS-485Modbus

Compatible with 1 phase 2 wires, 3 phase 3 wires, 3 phase 4 wire systems 11 to 300V (L-N), 19 to 519V (L-L) measurement Accuracy of Class 1 for energy LED Display with 1 row of 6 digits Dual source input, RS485 and MODBUS RTU (EM306-C-D) LED for Pulse Indication Specifications Display Type - 7 Segment LED Display Display Configuration - 6 Digits Electrical Connection - 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W Type of Output - Pulse Output Features - Active Energy monitoring (EM306) Active Energy monitoring with other multifunction parameters like Power, PF (EM306-C-D) Power Consumption - 8VA Max Communication Protocol - RS485 and MODBUS RTU (EM306-C-D) CT Primary - 1/5A to 10kA (Programmable for Any Value) CT Secondary - 1 / 5A (Programmable) PT Primary - 100V to 500kV PT Secondary - 100V to 500V AC Supply Voltage/D.G Sensing - 80 to 270V AC (45/65Hz) Size - 96 x 96mm Mounting Type - Panel Mount
