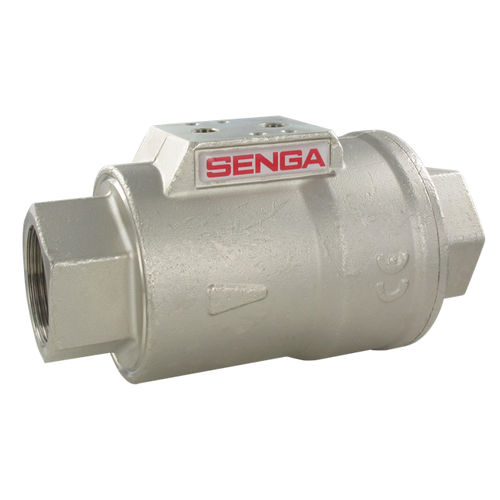

Piston valve VNC-VDA seriespneumatically-operatedblockingfor water
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- pneumatically-operated
- Function
- blocking
- Media
- for water, for oil, fuel oil, for steam, for compressed air
- Body
- female-female, NAMUR, nickel-plated brass
- Applications
- for industrial applications, for water, vacuum, for liquids, for fuel, for water systems
- Number of channels
- 4/2-way
- Other characteristics
- compact, single-acting, double-acting, with seal, pressure-independent
- DN
Max.: 2 in
Min.: 0.375 in
- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -20 °C
(-4 °F)
Description
Pneumatically operated blocking valves - VNC-VDA series
The pneumatically operated blocking valve provides the opening/closing function and the automation of this function in a single, space-saving product.
and the automation of the latter.
It operates independently of the upstream and downstream pressures of the flowing medium.
It is available in two versions: "Normally closed" and "Double acting".
Fields of application :
compressed air, water, oil
Technical data
- nickel-plated brass body
- seals : NBR / VITON
- pilot pressure : 4,2 to 8 bar (s. effect)
3 to 8 bar (d. effect)
- NAMUR interface
- maximum working pressure: 10 bar
- working temperature: -20°C ÷ 80°C
