- DC solid state relay
- Sensata Technologies

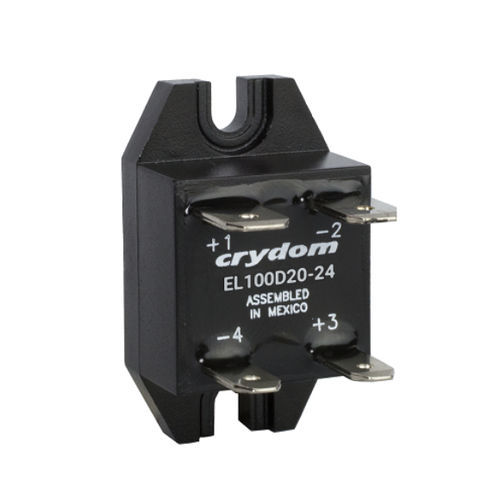

DC solid state relay EL Series1 NOcompactpanel-mount
Add to favorites
Compare this product
Characteristics
- Control voltage
- DC
- Contact configuration
- 1 NO
- Features
- compact
- Mounting
- panel-mount
- Other characteristics
- AC output, DC output
- Switching current
Max.: 30 A
Min.: 0.2 A
Description
EL Series AC output solid state relays come in a compact, 21mm x 35mm housing and offer ratings up to 30 Amps. These compact SSRs come with a pre-installed thermal pad, input LED status indicator, optional built-in overvoltage protection, and are C-UL-US and TUV certified and CE compliant.
The EL Series mechanical design includes quick connect terminals and an innovative 90° bent terminals option ideal for applications with limited vertical space.Additional features of the EL Series include:
- Load current ratings from 5 to 30 Amps @ 24-280 VAC
- Back-to-back SCR output with low off state leakage current
- Flexible 5, 12 and 24 VDC control voltage options
- Zero voltage or instantaneous turn-on outputs
- Plastic housing with min. 250 CTI rating (PLC2) for demanding applications
