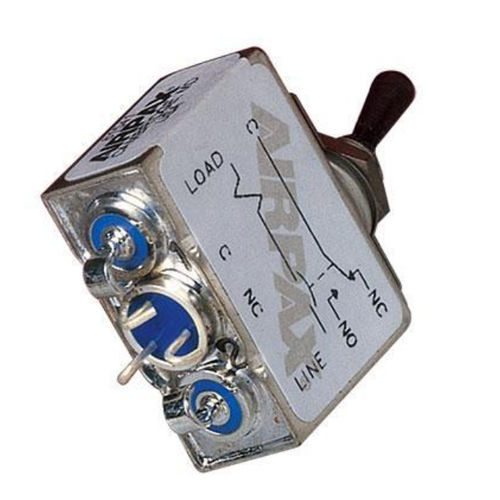

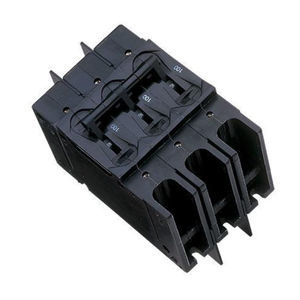

Hydraulic-magnetic circuit breaker AP series
short-circuitoverloadpower

hydraulic-magnetic circuit breaker
hydraulic-magnetic circuit breaker
hydraulic-magnetic circuit breaker
hydraulic-magnetic circuit breaker
Add to favorites
Compare this product


Characteristics

Type
hydraulic-magnetic
Electrical characteristics
short-circuit, overload, power, AC/DC, shunt
Number of poles
single-pole, 3-pole, 2-pole
Primary current

7.5 A, 15 A, 20 A

VAC

120 V, 240 V

VDC

50 V

Description

The Airpax™ AP series are fully sealed, magnetic circuit protectors that combine power switching and accurate, reliable circuit protection with inverse time delays and trip free features. Unlike a thermal circuit protector, the AP does not change its trip current over a wide temperature span. In addition, the AP magnetic circuit protector is available in either DC, 50/60Hz or 400Hz versions and with various delays to match the protector to specific application requirements. One of the most important features of this protector is the “trip free” action, which means the circuit will not remain closed in the presence of an overload even though the handle is held in the ON position. The delay mechanism senses the fault and the contacts open. Waterproof panel integrity is provided by an “O” ring bushing seal and a silicon rubber gland within the bushing/handle assembly. Salt spray testing per MIL-STD-202, Method 101, Test Condition B, with no evidence of corrosion, electrical or mechanical damage. Typical applications include communication, navigation and aircraft instrumentation, radar and power supplies.
