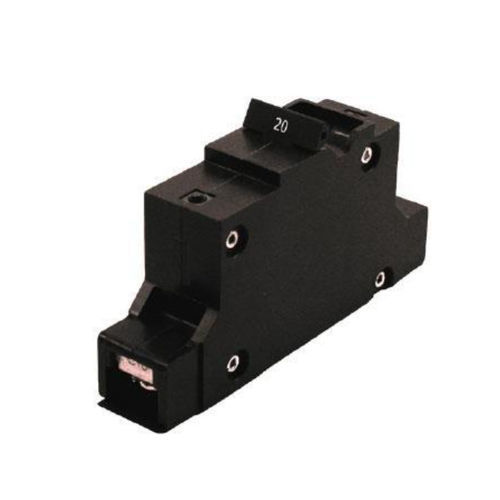

hydraulic-magnetic circuit breaker / single-pole / power / 2-pole
IAX/LUX/LEX Series Sensata Technologies

{{requestButtons}}

Characteristics

  • Type:

    hydraulic-magnetic

  • Electrical characteristics:

    single-pole, power, 2-pole

  • Applications:

    distribution

  • Current:

    Min.: 5,000 A

    Max.: 10,000 A

  • VAC:

    240 V

Description

Our lowest depth breaker family, the Airpax IAX/LUX/LEX series hydraulic magnetic circuit breaker allows increased density in datacenter rack power distribution units while leaving more space for equipment, wiring and airflow. These UL-489 Listed and IEC 60947-2 (pending) breakers are available in 1 and 2 pole models using a unique handle actuator (patent pending) which minimizes breaker volume while maintaining reliable switching and over current protection. Available high interrupt capacity 10 kAIC and low resistance all copper conductors meet the needs of high performing, high efficiency datacenters.

Features
- Based on the proven high performance of the Airpax LEG series
- Low depth to minimize PDU intrusion into equipment rack space
- 240VAC rating on a single pole further minimizes space requirements
- UL-489 Listed and IEC 60947-2 (pending)
- 5 kAIC and 10 kAIC versions available
- Standard (copper and brass) and low resistance (all copper) conductors available
- Unique handle actuator for protection against accidental “turn-off” with minimal size and no handle guard required
- Screw terminals provide secure vibration resistant connection for high reliability applications
- Terminal orientation allows simple power conductor routing and ease of assembly
