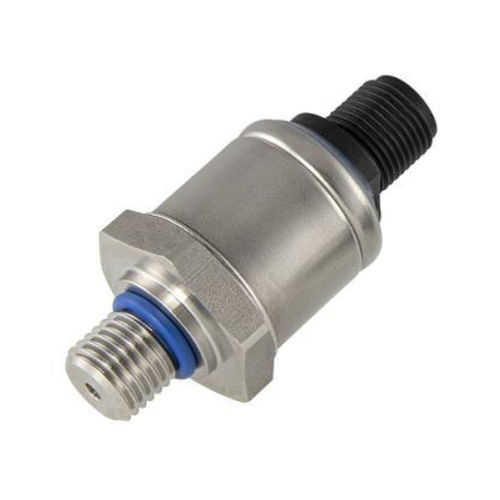

Strain gauge pressure sensor PTE7100 series analogM12 connector4-pole
Add to favorites
Compare this product
Characteristics
- Technology
- strain gauge
- Output
- analog
- Electrical connection
- M12 connector, 4-pole
- Supply voltage
- 24 Vdc, 12 Vdc, 15VDC, 32VDC, 8VDC
- Mounting
- threaded, O-ring
- Process connection
- NPT 1/4
- Material
- stainless steel
- Protection level
- rugged, IP65, IP67
- Applications
- for refrigeration circuits, for hydraulic applications, automotive, for pneumatic applications
- Other characteristics
- precision
- Pressure range
Max.: 600 bar
(8,702.26 psi)Min.: 0 bar
(0 psi)- Precision
0.25 %, 1.5 %
- Process temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
The PTE7100 pressure sensor is the ideal solution for customers with challenging measuring requirements for general industrial applications in the mid and high pressure ranges. Utilizing Sensata's automotive leading Micro Silicon Strain Gauge with best-in-class accuracy, the PTE7100 features a wide range of ports, connectors, and analog electrical outputs for ease of integration in various industrial applications.
