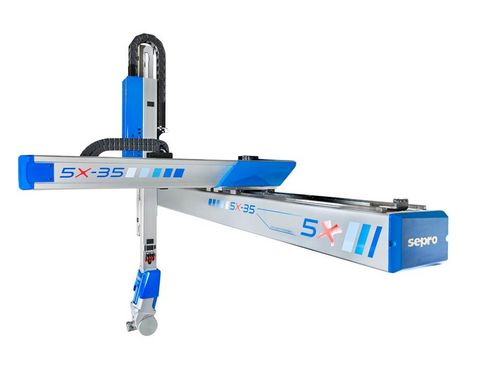

Cartesian robot 5X LINE
5-axisfor assemblypalletizing

Cartesian robot
Cartesian robot
Cartesian robot
Cartesian robot
Cartesian robot
Cartesian robot
Add to favorites
Compare this product


Characteristics

Type
Cartesian
Number of axes
5-axis
Function
for assembly, palletizing, pick-and-place, unloading, for press automation, stacking, mold-release
Application domain
for injection molding machines
Payload

Max.: 20 kg
(44.092 lb)

Min.: 5 kg
(11.023 lb)

Reach

Max.: 9,000 mm
(354.33 in)

Min.: 1,500 mm
(59.06 in)

Description

5X Line robots are designed from latest generation fast and precise Sepro 3-axis Cartesian robots with a Stäubli 2-axis servo wrist. A unique combination that provides a number of solutions for automating injection molding machines. These robots installed on the IMM can be used for unloading and processing parts; they can be located at the end of the IMM to perform post-processing. They can be programmed quickly and efficiently thanks to the power and user friendliness of the Visual 3 control system. Overview Structural frame for increased rigidity Prismatic linear guides for high accelerations Powerful servomotors and antivibration software Path tracking function standard thanks to Visual 3 Direct or telescopic (except for 5X-15) vertical arm Good-looking mechanics! 5X line is a range of high-performance and flexible 5-axes industrial robots. It can be adapted to all your unloading and injected part completion applications. The range comprises 3 models, the 5X-15, the 5X-25 and the 5X-35, to equip your IMMs ranging from 30 to 800 tons. Rigid The structural frame and prismatic guide rails ensure greater rigidity, adapted to the high acceleration of moving parts.

VIDEO
