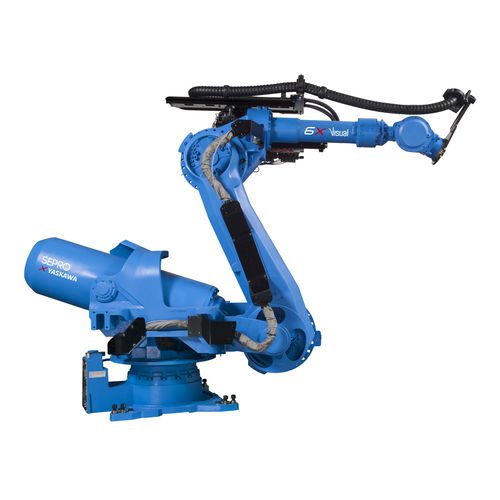

Articulated robot 6X series6-axishandlingfor assembly
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 6-axis
- Function
- handling, for assembly, packaging, pick-and-place, loading, unloading, mold-release, finishing, extraction
- Mounting
- floor-mounted, ceiling-mounted, shelf
- Application domain
- for heavy loads, for injection molding machines
- Protection level
- IP54, IP67
- Payload
7 kg, 8 kg, 12 kg
(15.432 lb, 17.637 lb, 26.455 lb)- Reach
727 mm, 927 mm, 1,440 mm
(28.62 in, 36.5 in, 56.69 in)- Repeatability
0.02 mm, 0.03 mm, 0.08 mm
(0.0008 in, 0.0012 in, 0.0031 in)
Description
The range of 6-axis polyarticulated robots: 6X Visual combined with the Sepro Visual 3 control platform offers a Premium solution for carrying out all tasks, from simple unloading to more complex applications.
The Sepro Yaskawa large-sized arms are suitable for use in a large work area. They can take heavy loads for 500-tonne to 5000-tonne IMM.
Presentation
Large-sized arm with a large radius of action
Lean architecture
High-torque wrists for large EOATs
Floor layout for side access into the mold: 6X-205 and 6X-270
Fixed IMM platen layout for access from above the IMM: 6X-315, 6X-400
Reduced maintenance
Simplified programming thanks to the 3D Simple Pick & Place module on the Visual 3 control system
Compact cabinet
