heavy-duty telescopic column heavy-duty telescopic column - LinkLift


  • Other characteristics:


  • Force:

    30 kN

  • Stroke:

    Max.: 4 m (13'01")

    Min.: 0 m (0'00")

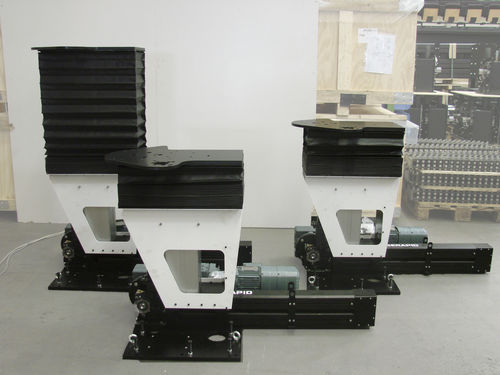

Heavy duty telescopic column
A compact, self-guided lifting system

The telescopic lifting column designed by SERAPID meets the demand of a growing market for compact lifts. This purely mechanical drive system is based on our Rigid Chain Technology and is easy to install even in difficult environments, can be configured for specific functions, and requires only minimal installation space. The system consists of a LinkLift drive and a telescopic mast, which stabilizes the extended lifting chain and the load. It forms a unit specifically designed for applications where the loads cannot be guided.
Easy to install, no excavation work or tunnel boring is required because the retractable lifting chain is stored in a compact magazine at the ground level. In operation, the applied conveying forces are transferred to the foundation plate, making for superior stability.
Already in use on industrial assembly lines (aviation, automotive, nuclear, thermal, etc.), they are a genuine alternative to hydraulic solutions; reducing environmental impact, increasing the reliability of the equipment, and eliminating most of the maintenance costs.
The telescopic lifting column is available in different sizes and options, for all industrial sectors, depending on the needs of the customer. For larger installations, the units can be grouped and the operation easily synchronized via frequency inverters.

Technical specifications :
Capacity : up to 30kN
Stroke : up to 4 m
Maximum lifting speed : 150 mm / s
Positioning accuracy : ± 1 mm
Application : Indoor and outdoor
Standard execution, special versions possible
