Gas analyzer THEMYS HP

benchtopmodularDSC

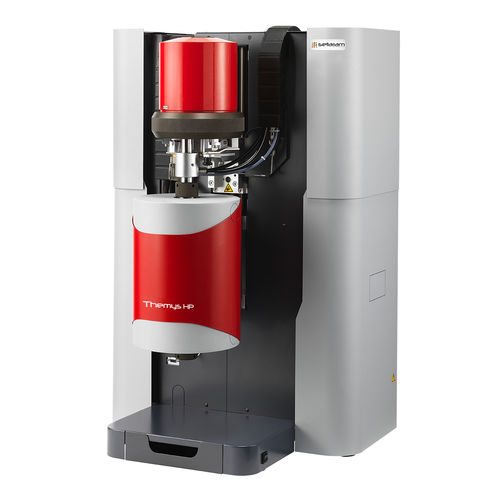

For High Pressure Temperature and Mass Variation measurements. Your Versatile Platform for High Pressure conditions THEMYS HP is a specific, pressure-rated TGA. It combines a high temperature furnace and a hang down balance for the best mass variation measurement accuracy. It controls pressure accurately thanks to a dual back pressure regulating device. Why is it Unique? HIGH TEMPERATURE AND HIGH PRESSURE CAPABILITY up to 1200 °C and 150 bar with a single furnace, to replicate real process conditions HIGH ACCURACY & VERSATILITY hang-down symmetrical beam balance, specifically designed for TGA applications • continuously measures sample mass variations • drastically limits the TGA signal background noise and reduces drift • improves gas/sample interaction BUILT-IN SAFETY compliant with European Pressure Equipment Directive 2014/68/EU – group 2 gases (non-explosive, non-flammable, non-toxic) Applications THEMYS HP applies to pyrolysis, combustion, or gasification studies. It simulates processing conditions of coal, biomass or waste to energy processes. It is also designed for high temperature and pressure oxidation studies of metallic alloys.
