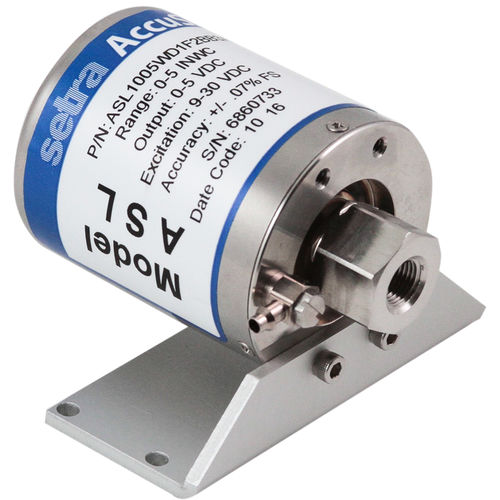

Differential pressure transducer ASL
membranethermalanalog

differential pressure transducer
differential pressure transducer
differential pressure transducer
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
membrane, thermal
Output
analog
Material
stainless steel
Protection level
rugged, IP65, NEMA 4X
Applications
for medical applications
Pressure range

Min.: 0 psi

Max.: 250 psi

Precision

0.07 %

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

Setra’s Model ASL is the highest accuracy transducer for measuring low differential pressure in the AccuSense™ product line. Its ±0.07% FS accuracy is calibrated using the “End Point Method” which improves linearity when compared to competitive transducers, which use the “Best Fit Straight Line Method” of calibration. Product description Setra’s Model ASL is the highest accuracy transducer for measuring low differential pressure in the AccuSense™ product line. Its ±0.07% FS accuracy is calibrated using the “End Point Method” which improves linearity when compared to competitive transducers, which use the “Best Fit Straight Line Method” of calibration. The ASL’s calibration is tamper proof by utilizing a SecureCal™ calibration key which eliminates inadvertent adjustments, while allowing authorized users to adjust the sensor’s calibration coefficients for a true sensor calibration. The design of the ASL offers class leading overpressure capability and multiple pressure and electrical fittings to accommodate a wide range of applications. High Accuracy for Demanding Applications - The Model ASL differential pressure transducer uses a resonant variable capacitance sensor. This sensor is linearized and thermally compensated through a computerized curve fitting algorithm that optimizes the sensor’s linearity for maximum accuracy in demanding applications. Robust Design & Construction for Reliable Service - The Model ASL is designed and built to withstand demanding applications. The laser welded sensor construction, designed with positive and negative overpressure stops,

Catalogs

No catalogs are available for this product.

See all of SETRA‘s catalogs
