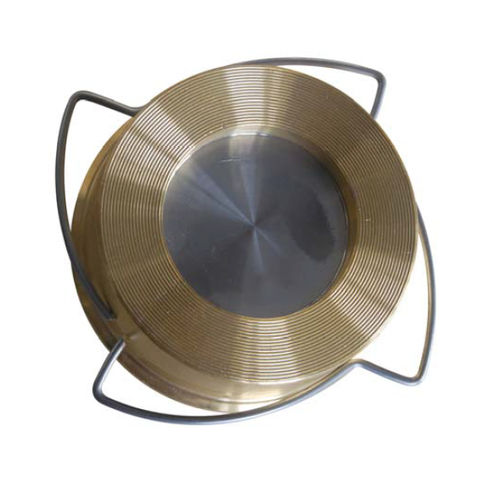

Disc check valve 385 series

waferfor waterstainless steel

These brass check valves come in spring types can be used in all positions in respect to the direction of flow. They have metal tightness and stainless steel discs for maximum protection. They are beneficial in watering, heating and water distribution and feature minimum temperatures of 10°C, maximum temperatures of 250°C and maximum pressures of 16bar. SPECIFICATIONS ; • - Respect the flow direction indicated by the arrow • - Female / female type • - Nylon throttle • - Perfect centering of the throttle on the seat thanks to the double axial and latéral guidance • - Low opening pressure • - Better mechanical strength thanks to the brass CW617N body • - Ail positions with SS 302 spring • - Excellent low and high pressure tightness thanks to the NBR gasket USE: • - Heatmg. drinkable water. cold and hot water • - Min Température Ts : - 10°C • - MaxTemperature Ts :+ 110°C • - Max Pressure Ps : 16 bars up to DN 1*. 10 bars from 1"1/4 to 2“ and 8 bars over OPENING PRESSURE : • Opening pressure between 20 and 200 mbar RANGE : Threaded BSP cylindrical female from DN 3/8‘ to DN 4“
